Product details

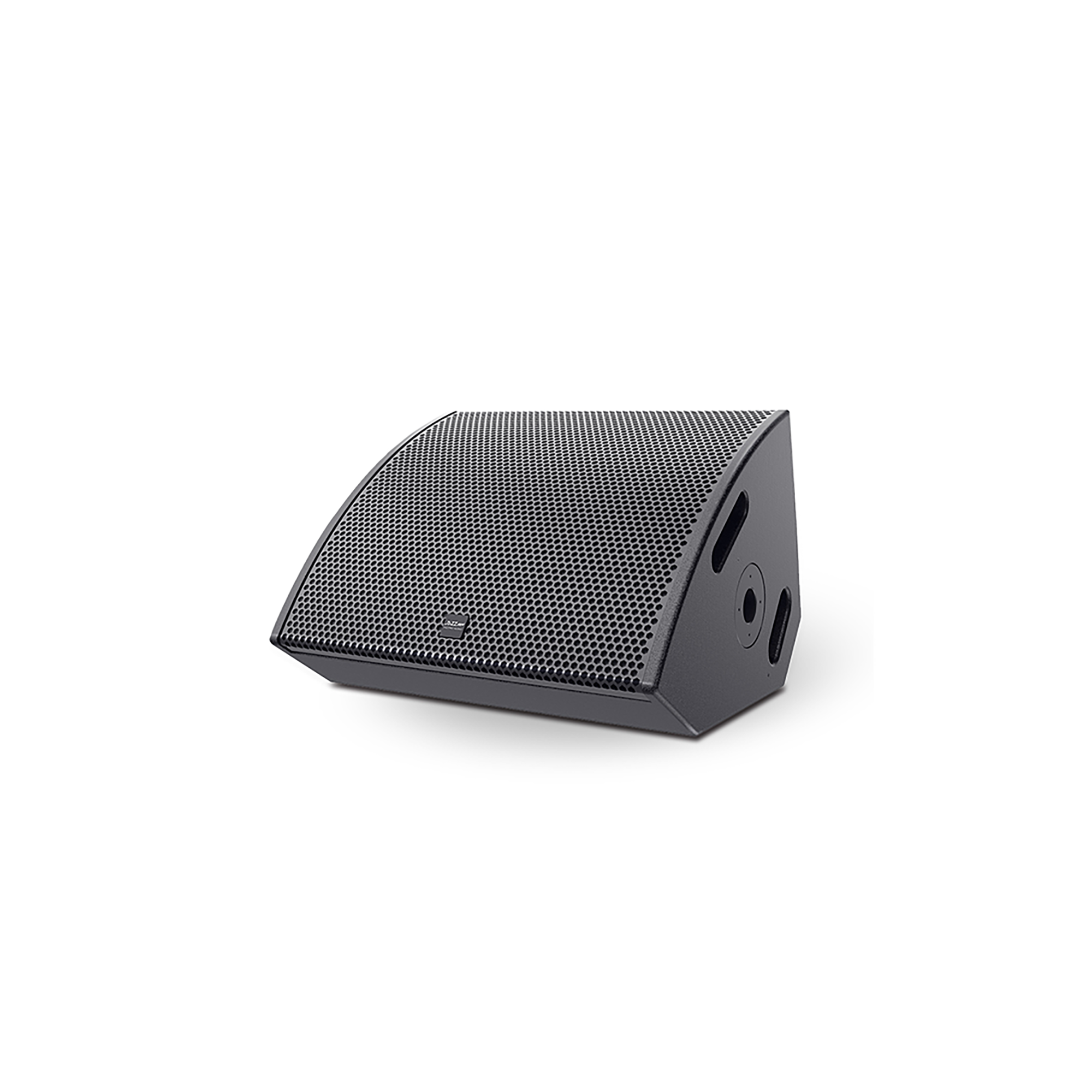

Suitable for near-field monitoring and auxiliary sound reinforcement;
The axis-symmetric design of the high and low frequencies ensures that the speaker's horizontal and vertical directivity is relatively consistent,
reducing the lobe effect of non-coaxial speakers, making the sound box closer to an ideal point sound source, resulting in better presence and clarity;
The asymmetrical trapezoidal design facilitates angle adjustment for placement;
Depending on the needs of near and far fields, it allows for convenient angle adjustments, making it more suitable for stage monitoring.
The CM series speakers are also very suitable for multifunctional use in front-of-house sound reinforcement and under-seat fill;

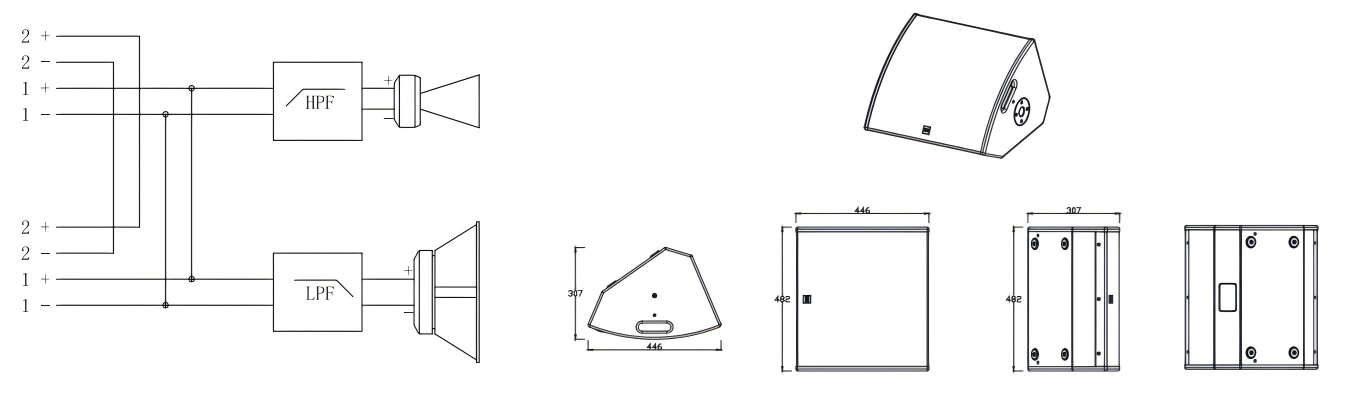

Utilizing a passive two-way design, with a nominal impedance of 8Ω, each speaker requires only one amplifier channel for driving, allowing for two speakers
to be used in parallel (resulting in a corresponding amplifier load of 4Ω).
Product technical specifications
Frequency response | 60Hz -20kHz(-10dB) | Input Connection | 2x Neutrik NLT4M（+1/-1） |
Nominal Directivity HxV（-6 dB) | 80°×80° | Dimension(mm) | H/W/D（482/446/307）mm |
Nominal Sensitivity ity（1W/1m） | 99dB | Weight | 23KG |
Maximum Peak SPL | 123dB/129dB（Peak） | Case Material | First grade multi-layer plywood |
Power Handing(AES/Peak) | LF：400W（Rated）/1600W（Peak） HF：60W（Rated）/240W（Peak） | Surface Treatment | PCP |
Driver Components | LF：1×12”Driver HF：1×1”Driver | Protection rating | IP54 |
Nominal lmpedance | 8Ω |
