Product details
The speaker cabinet is made of custom European-grade multilayer plywood,
with a surface coated in waterproof diamond sand and treated under high temperature and pressure.
The front of the cabinet features a 2mm thick perforated protective steel mesh,
and is lined with multiple layers of waterproof sound-permeable material, providing strong resistance to wear, water, and moisture.
Product technical specifications
Frequency response：60Hz-20KHz（-10dB）
Nominal Directivity HxV（-6 dB)：100°×15°
Maximum Peak SPL：131dB/137dB (Peak)
Power Handing(AES/Peak)：LF：700W
HF：110W

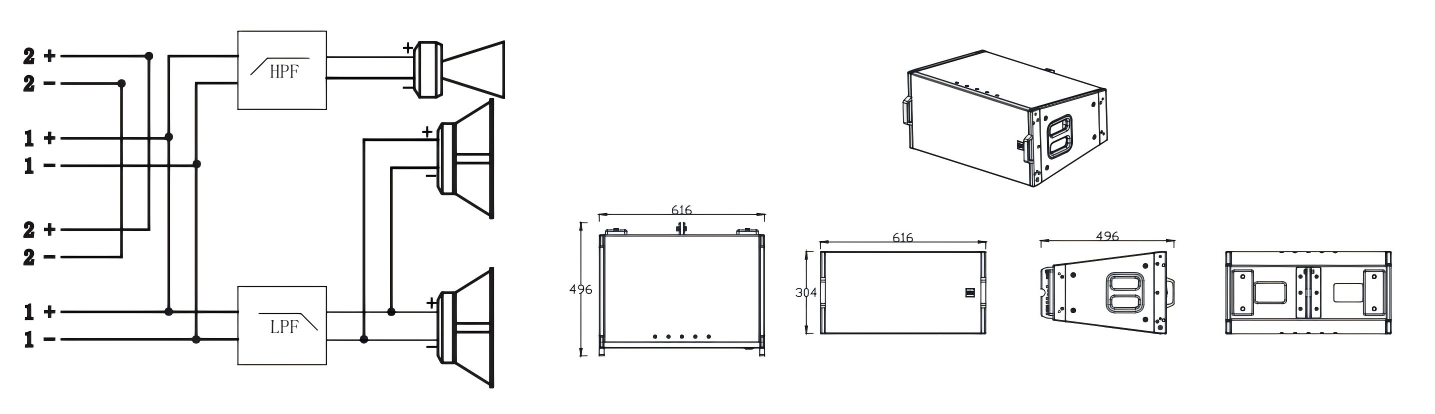

Driver Components：LF：2×10" Neodymium Drivers
HF：1×3" Compression Driver
Nominal lmpedance：8Ω
Input Connection：2x Neutrik NLT4M（+1/-1）
Rigging：4-point connection
Bending Angle：0°-15°
Dimension(mm)：H/W/D（304/616/496）mm
Weight：33KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
Protection rating：IP54
