Product details
featuring an internal structure made up of 2 three-inch neodymium magnetic compression drivers, 2 eight-inch neodymium magnetic midrange
drivers, and 2 twelve-inch neodymium magnetic low-frequency drivers.
It adopts a coaxial design for the mid and high frequencies (with a preset frequency range of 300Hz-20kHz) and employs a horizontal 90° and
vertical 8° acoustic module for even dispersion, significantly optimizing the phase consistency of the mid and high frequencies and greatly improving
the frequency coupling effect between adjacent units.

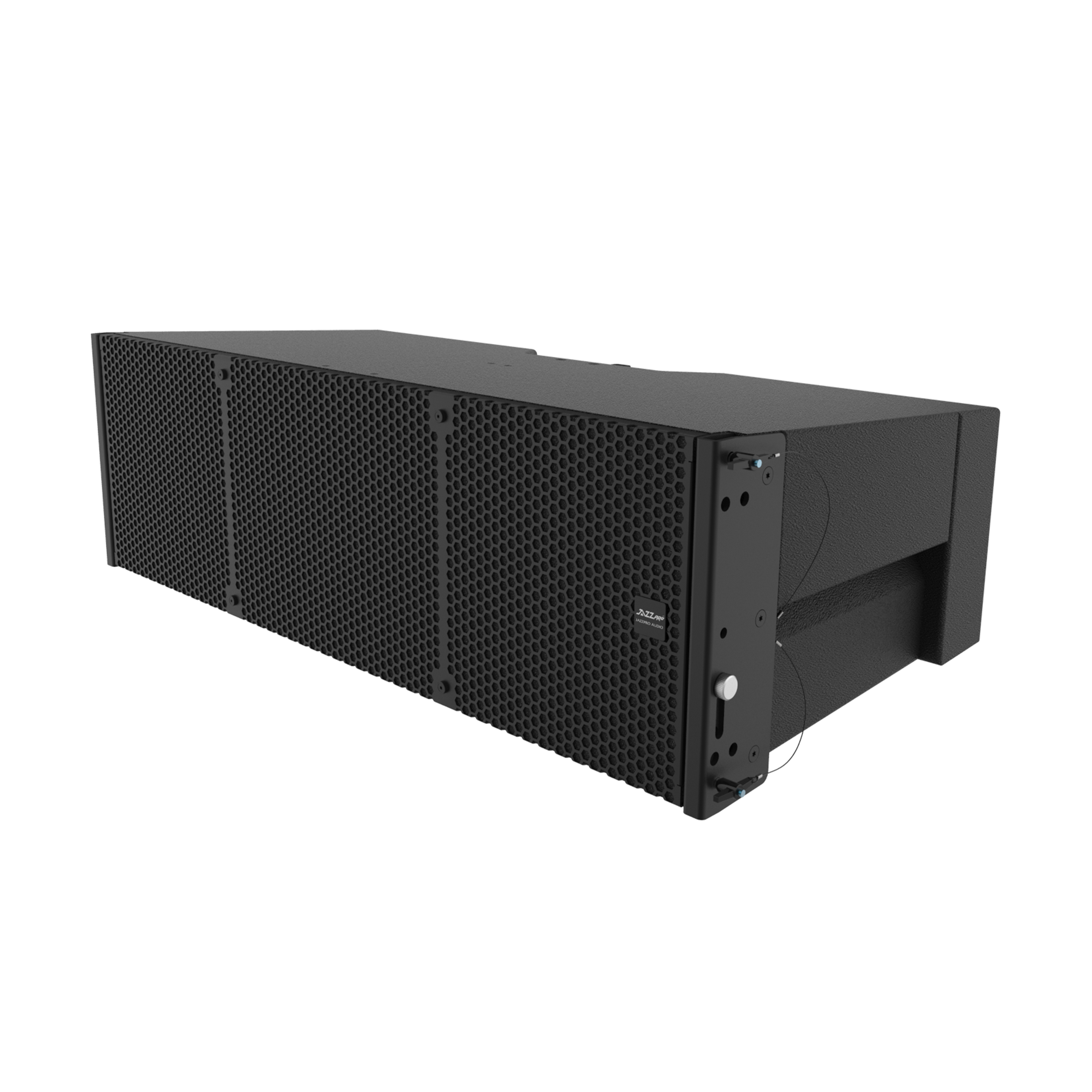

The speaker cabinet is made of custom European-grade multilayer plywood, with a surface coated in PCP (polyurea)
chemical coating that fully complies with environmental protection standards.

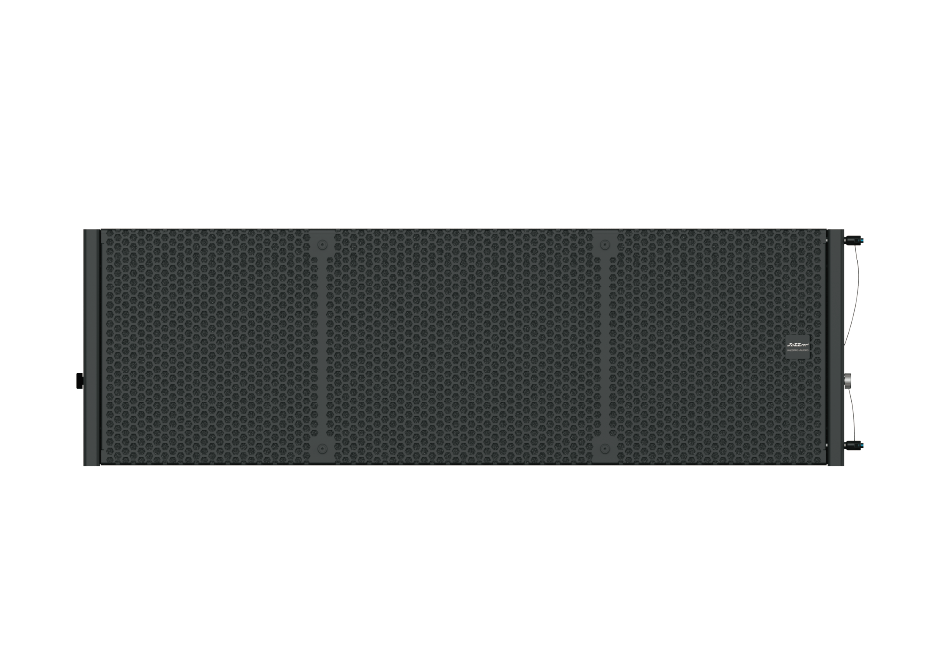

The front of the cabinet features a 2mm thick perforated protective steel mesh, with multiple layers of waterproof
and sound-permeable materials inside, providing strong resistance to wear, water, and moisture.

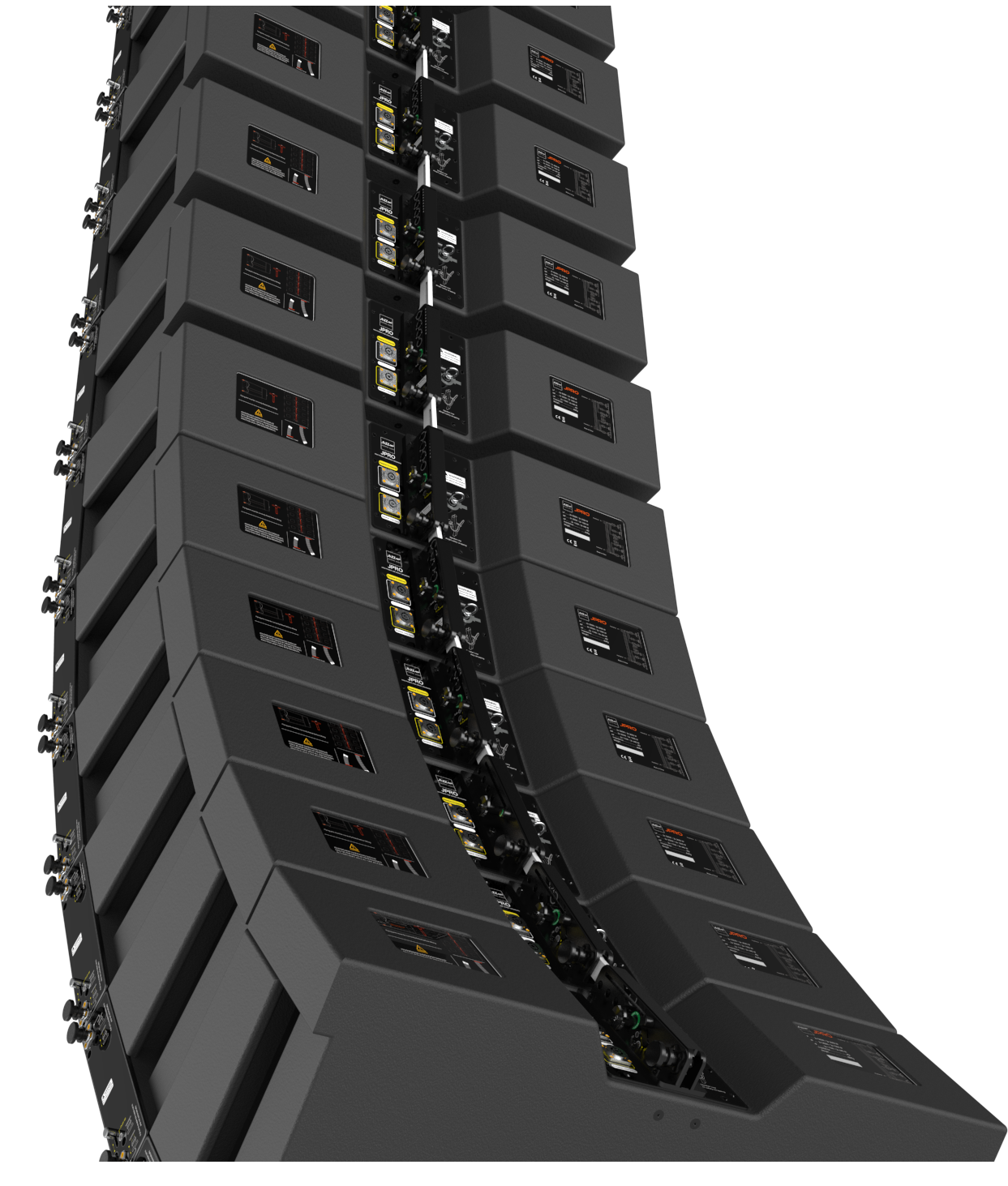

The speakers are suspended in the air using a three-point connection method, with connector components made
of thick stainless steel, allowing for a maximum connection of up to 24 units in a series.
The maximum bending angle between adjacent speakers is 8°, with a 1° increment.
Product technical specifications
Frequency response | 45Hz-20KHz（-10dB） | Input Connection | 2x WS28 NLT8M（+1/-2/+1/-4/+5/-6） |
Nominal Directivity HxV（-6 dB) | 90°×8° | Rigging | 3-point connection |
Nominal Sensitivity ity（1W/1m） | LF：103dB；MF：105dB；HF：114dB | Bending Angle | 0°-18°（1°Enter） |

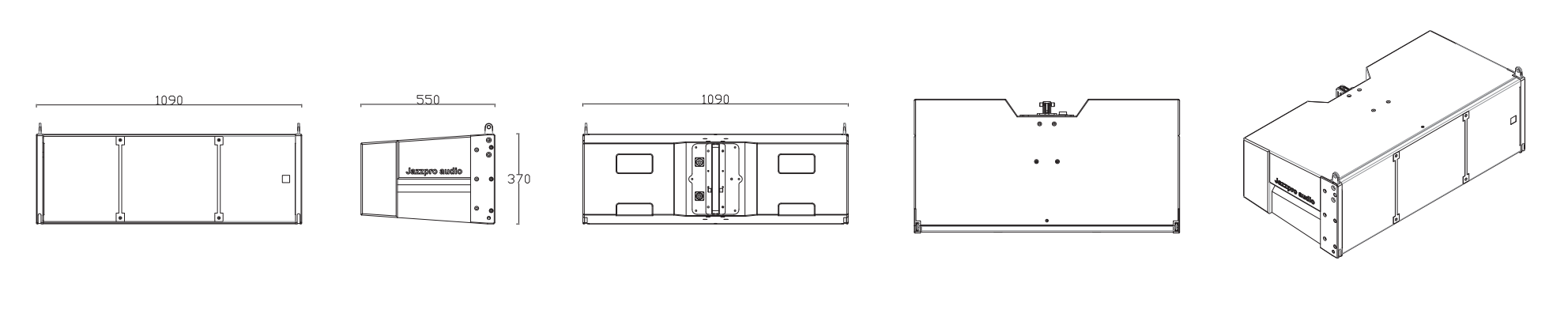

Maximum Peak SPL | LF：135dB/141dB(峰值) MF：133dB/139dB(峰值) HF：137dB/143dB(峰值) | Dimension(mm) | W/H/D（370/1090/550）mm |
Power Handing(AES/Peak) | LF：1000W（Rated）/4000W（Peak） MF：600W（Rated）/2400W（Peak） | Weight | 60KG |
HF：220W（Rated）/880W（Peak） | Case Material | Russian birch plywood | |
Driver Components | LF：2×12”Driver（Crossover） MF：2×8”Driver（Crossover） HF：2×3”Driver（External crossover） | Surface Treatment | PCP |
Nominal lmpedance | LF 8Ω（L&R）；MF/HF 8Ω | Protection rating | IP56 |
