AM15/AM15P

Product type: 【CM、AM Series】Stage monitor
Product Profile:The AM series speakers are coaxial speakers, which are highly suitable for stage monitoring by musicians and singers.
Contact us WeChat

Product details

The AM series speakers are divided into active series (with DSP and power amplifier modules) and passive series, which can be self-selected according to different uses.
The cabinets of AM series speakers are made of Russian birch wood with waterproof polyurea paint. The left and right sides of the cabinet are ingeniously designed with moving and handling handgrips, and both left and right sides are equipped with signal input and output jacks, which greatly facilitates the parallel connection of speakers. The simple cabinet design, excellent vocal clarity, and extremely high instrumental expressiveness provide artists with more performance space.


Product technical specifications


→ AM15（Passive）

Frequency Response：54Hz-20kHz (-10dB)

Nominal Directivity（-6dB）：90°×60°

Maximum Peak SPL：125dB/131dB（Peak）

Power Handing(AES/Peak)：500W

Driver Components：1×15" neodymium coaxial driver (15" LF + 3" HF)

Nominal lmpedance：8Ω

Dimension(mm)：(W x H x D) 560×530×408(mm)

Weight：21kg

Case Material：Grade A Multilayer Plywood

Surface Treatment：PCP

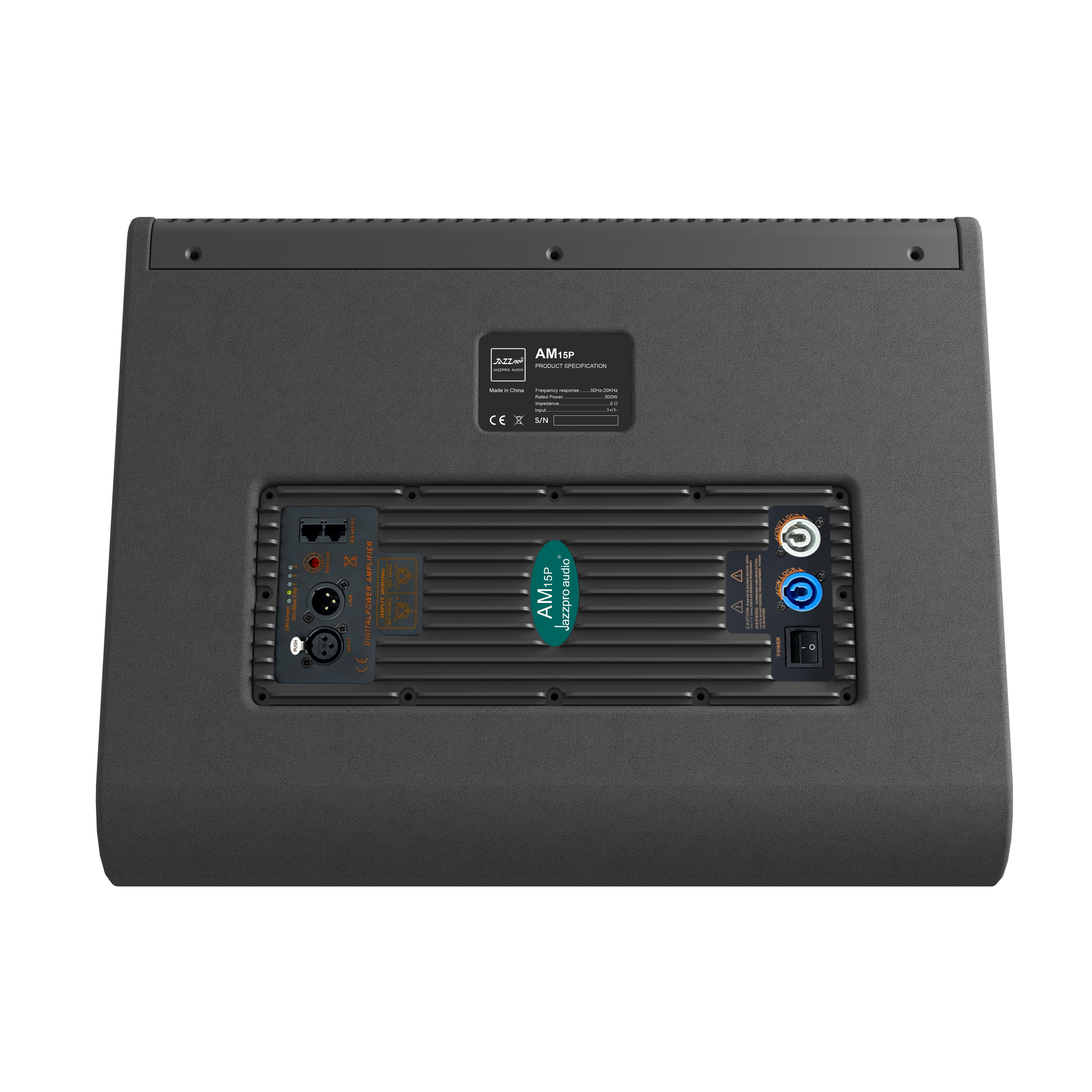

→ AM15P（Active）

Frequency Response：54Hz-20kHz (-10dB)

Nominal Directivity（-6dB）：90°×60°

Maximum Peak SPL：125dB/131dB（Peak）

Power Handing(AES/Peak)：500W

Driver Components：1×15" neodymium coaxial driver (15" LF + 3" HF)

DSP-Integrated Power Amplifier：1300W/8Ω

Dimension(mm)：(W x H x D) 560×530×408(mm)

Weight：23.5kg

Case Material：Grade A Multilayer Plywood

Surface Treatment：PCP
