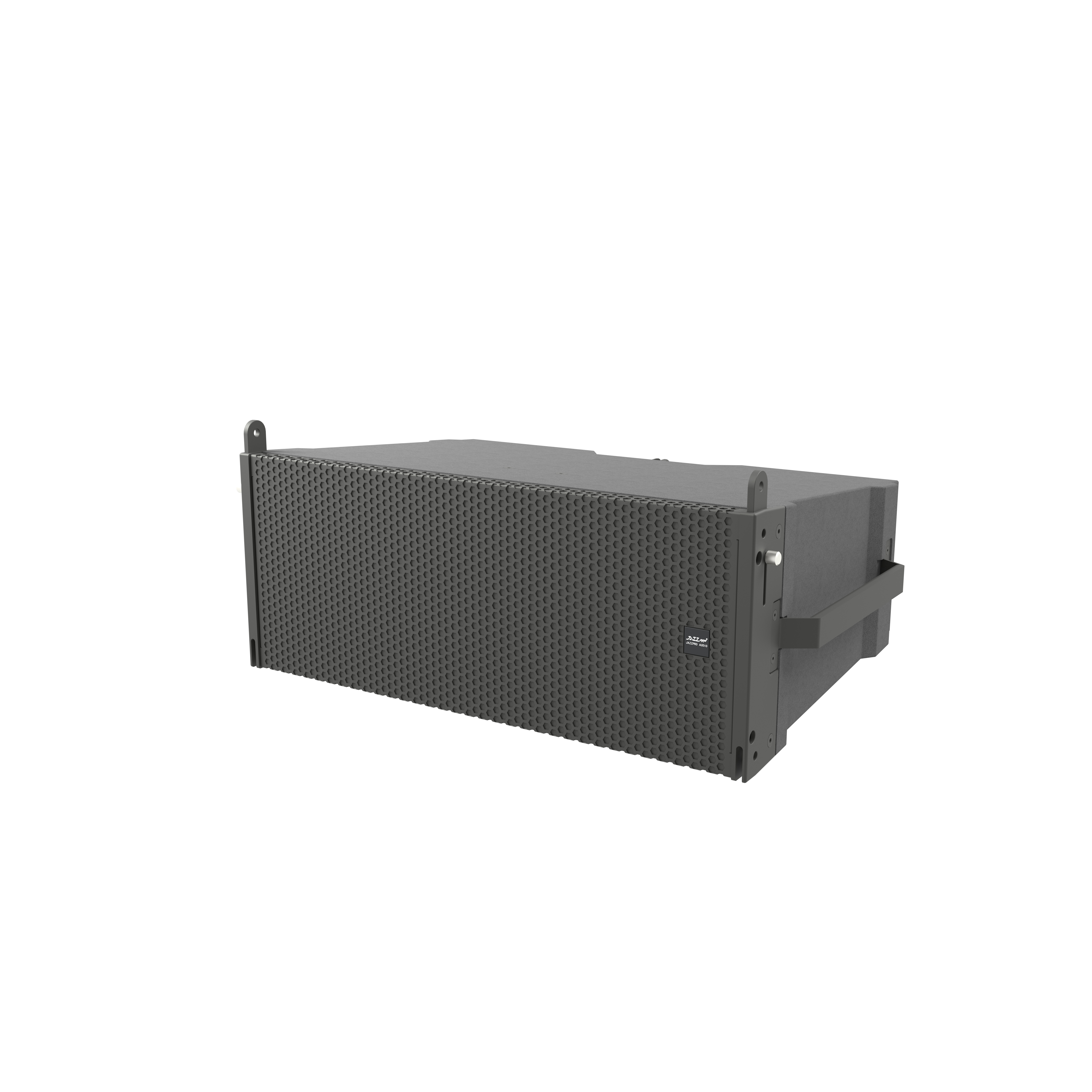

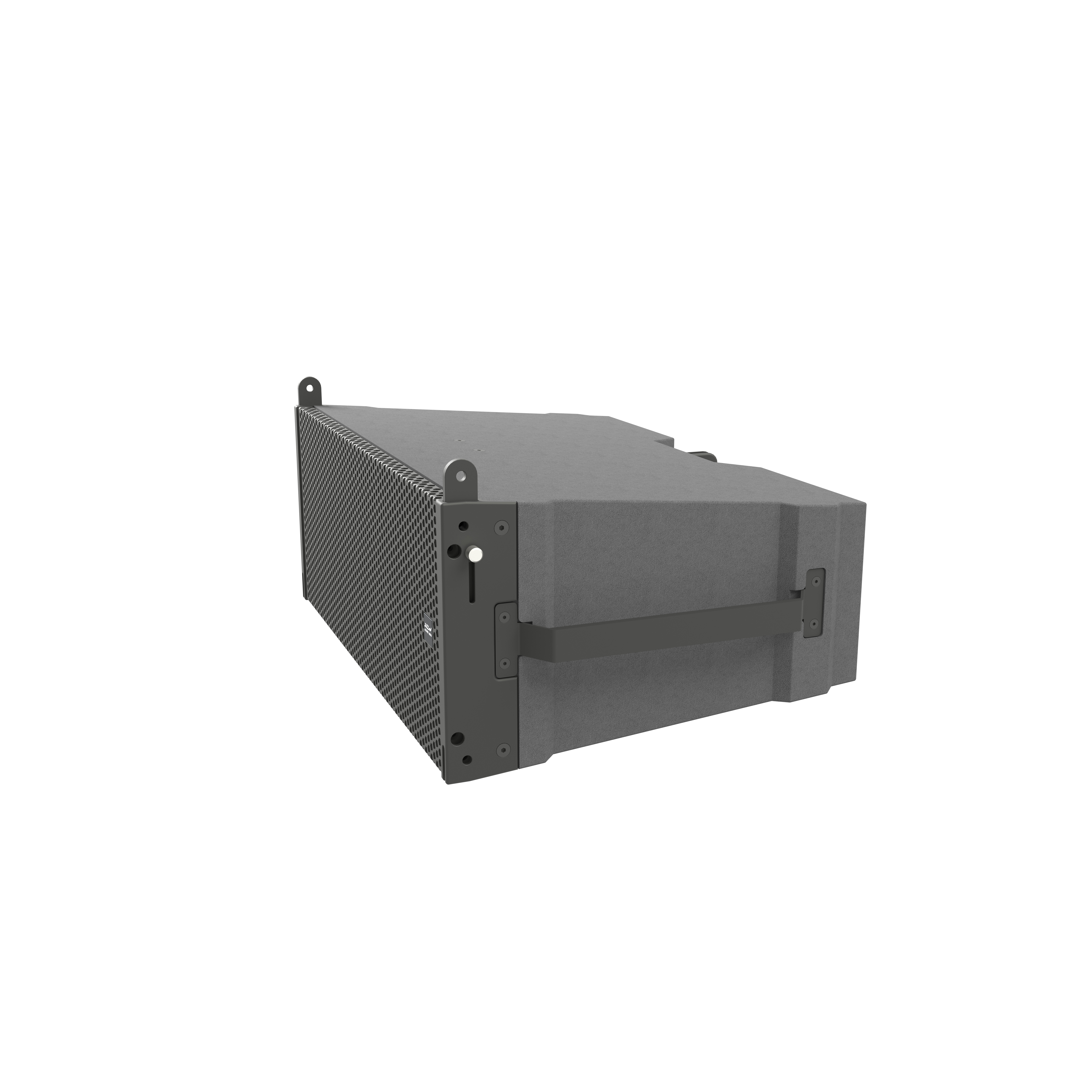

J30

Product type: 【J Series】Line array

Product Profile:The J30 is a dual 10-inch 3-way line array speaker, the system consists of two 10-inch LF drivers, one 8-inch mid-frequency driver, and one 3-inch high-frequency driver; The 75-core IF driver and 75-core HF driver form a coaxial structure, which greatly improves the IF density and transient response.

Product details

Product Features:

3-way mid-high frequency coaxial line array speaker
Small size with high sound pressure, suitable for various sound reinforcement scenarios
System compatible with 21-inch subwoofer

Product technical specifications

Frequency response：50Hz-20kHz (-10dB)

Nominal Directivity HxV（-6 dB)：100°×10°

Nominal Sensitivity ity：132dB/138dB

Power Handing(AES/Peak)：800W

Driver Components：LF：2×10”Neodymium Drivers

MF：1×8”Neodymium Driver

HF：1×3”Neodymium Driver

Nominal lmpedance：8Ω

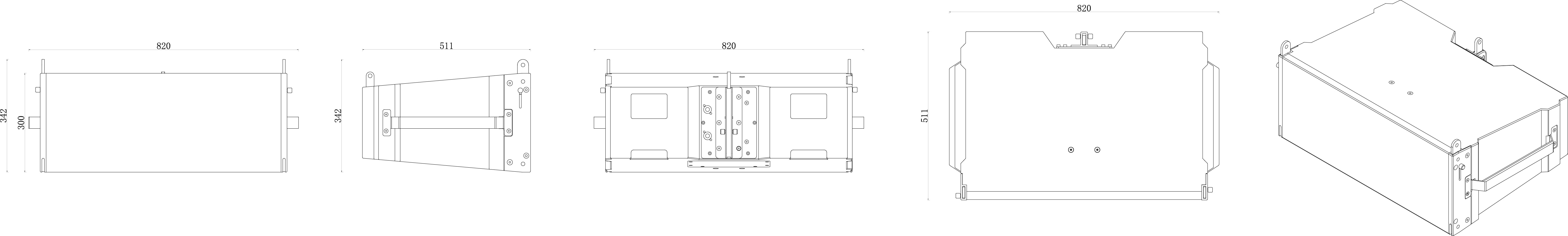

Dimension(mm)：W/H/D (300/750/511)mm

Weight：40kg

Case Material：First-grade multi-ply plywood

Surface Treatment：PCP
