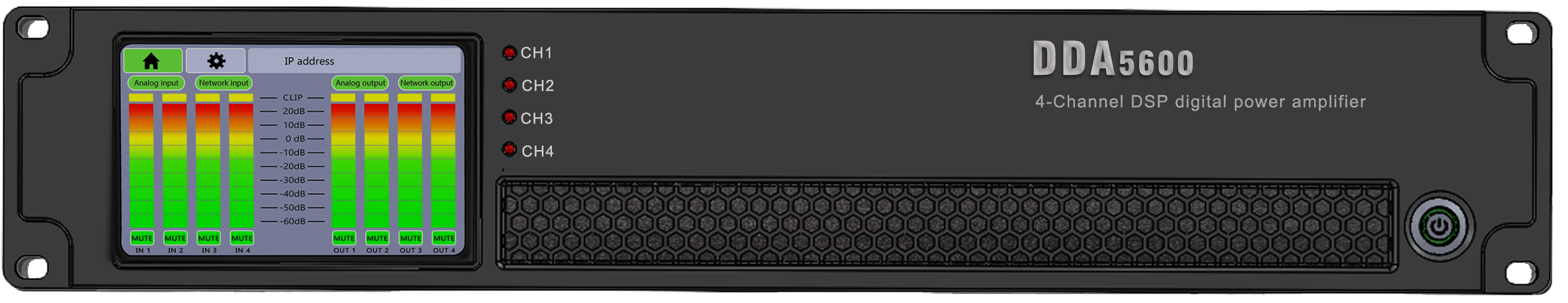

Product details
Product Application Scope:
The product is suitable for sound reinforcement venues such as theaters, stadiums, multi-purpose halls, large-scale venues, outdoor performances, and bars.
Product Features:
Built-in functions including gain, delay, noise gate, EQ, compression, limiting, phase, high-pass filter, low-pass filter, and FIR can be independently added to or removed from the inputs/outputs.
It adopts an independent modular design for the power amplifier's output stage and a Class D amplifier output stage topology. Combined with a high-efficiency PFC switching power supply with wide voltage design, it can provide a stable output voltage to the power amplifier even when there are significant fluctuations in the power supply voltage.
With four symmetrically arranged modules, the overall layout of the unit is extremely compact and neat.
Equipped with a 4.3-inch 800480 high-definition touch screen (note: the resolution 8004800 is likely a typo, adjusted to the common 800*480 for technical rationality), it enables simple operation and clear display of system status. Ample power combined with a powerful built-in DSP allows this amplifier to perfectly cater to both the fixed installation and mobile performance markets.
Product technical specifications
Output power 8Ω 1kHz | 4×1400W | SNR 20Hz-20kHz 8Ω | ≥110dB |
Output power 4Ω 1kHz | 4×2600W | THD+N 8Ω | ≤0.1% |
Output power 2Ω 1kHz | 4×3000W | Sensitivity 0dB | 1.8V |
Output circuit type | Class D | Output efficiency 8ΩRated Output | ≥92% |
Power operating range | AC90V-264V/45Hz-60Hz | Balance input impedance | >20k |
Slew rate | 28V/us | Protection design | Overheat/Overload/Short Circuit/Current Limit/DC/UHF |
Frequency response 20Hz-20kHz 8Ω | ≤±0.5dB | Size（W*D*H mm） | 483*445*88 mm |
IMD At 60Hz and 7kHz 4:1,8Ω | ≤0.1% | Weight | 11.7kg |
