Product details

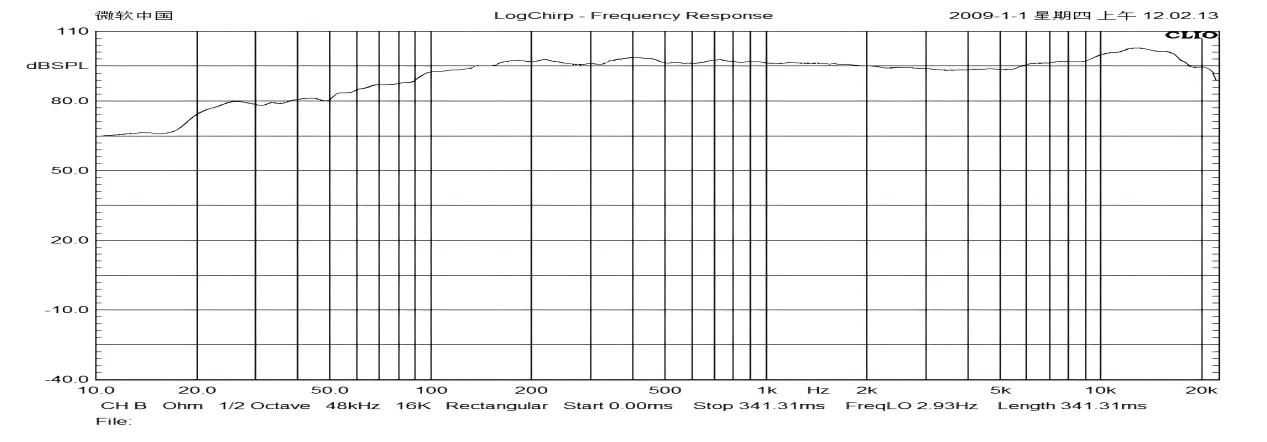

Fig.1 HK800 Frequency Response Curve

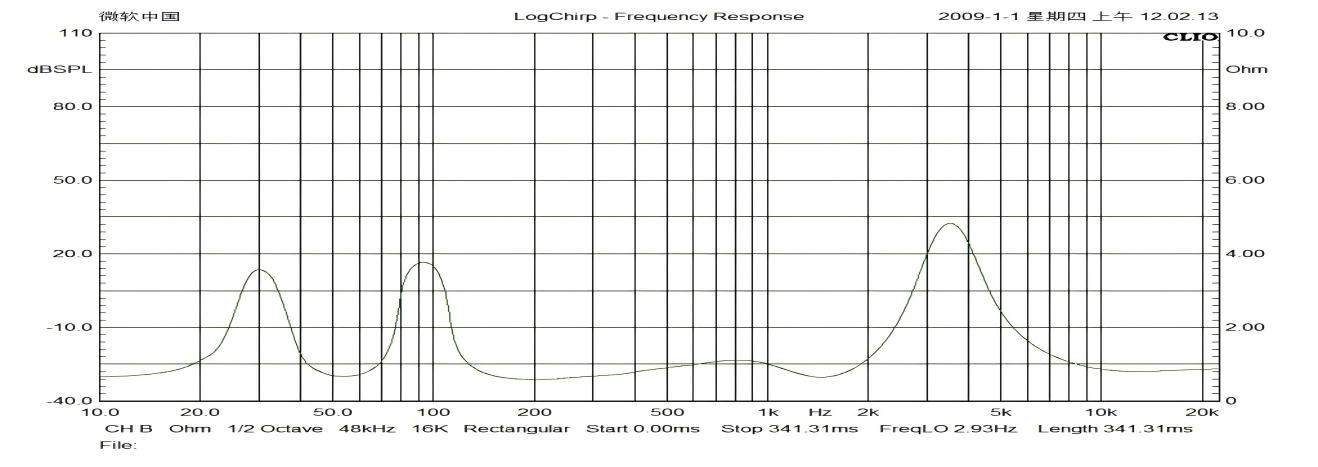

Fig. 2 HK800 Impedance Curve
Product technical specifications
Frequency response：50Hz-20kHz (-10dB)
Nominal Directivity HxV（-6 dB)：90°×60°
Nominal Sensitivity ity（1W/1m）：97dB
Maximum Peak SPL：126dB/132dB
Power Handing(AES/Peak)：550W
Driver Components：LF 1×12”HF 1×1.75”
Nominal lmpedance：8Ω
Input Connection：2x Neutrik NLT4M（+1/-1）
Dimension(mm)：H/W/D（360/600/395）mm
Weight：21kg
Case Material：First-grade multi-ply plywood
Surface Treatment：Black water-based paint
